Fencing System

Components

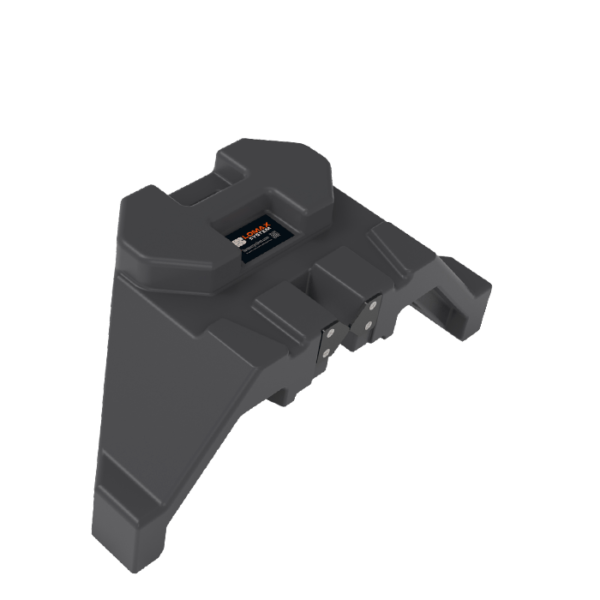

LOMAX STANDARD COUNTERWEIGHT (HOARDING AND FENCING APPLICATIONS)

  • 90x45mm (4×2) recess designed to receive either a vertical hoarding timber stud or a fencing support post
  • Integrated metal plates to retain either the timber stud or the fencing support post
  • 32mm OD holes to receive hoarding support posts or fencing panels
  • Horizontal track to receive hoarding crossbeam support timbers
  • Easy carry handles
  • Interlocking shape for secure stacking
  • 120mmH x 350mmW x 460mmD
  • 18Kg weight

FENCING COMPONENTS

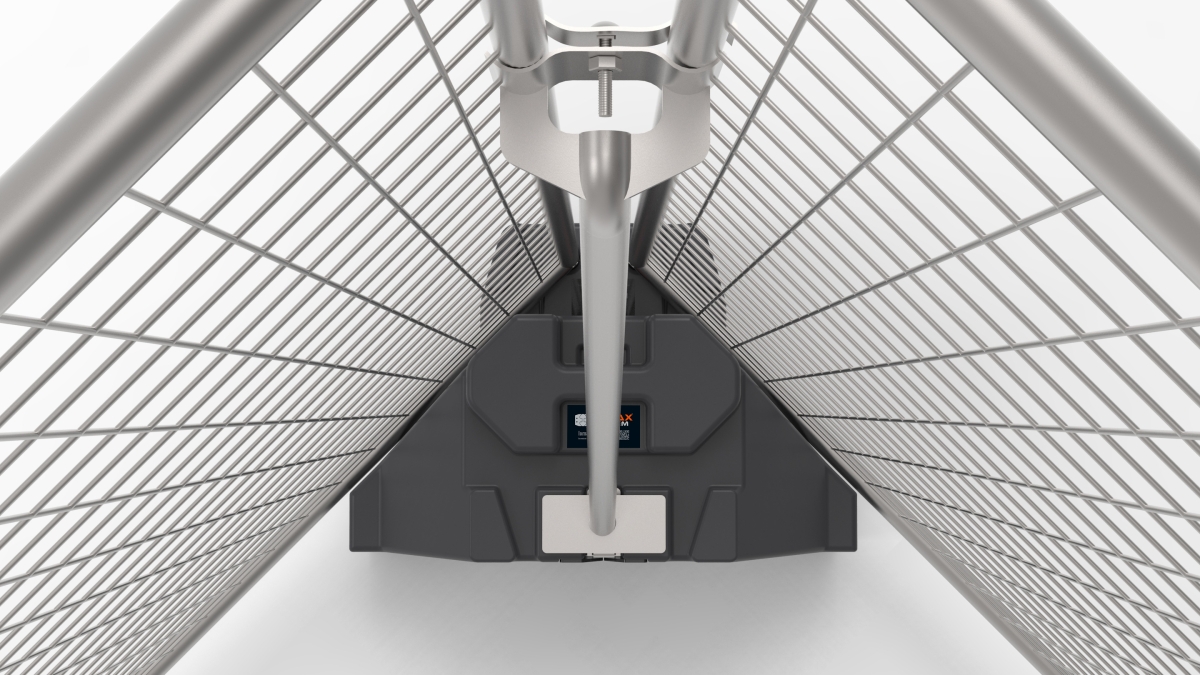

LOMAX SADDLE COUNTERWEIGHT
  • 90x45mm (4×2) recess designed to receive fencing support post
  • Integrated metal plates to retain the fencing support post
  • Easy carry handles
  • Interlocking shape for secure stacking on top of the Standard Counterweight
  • 30kg weight

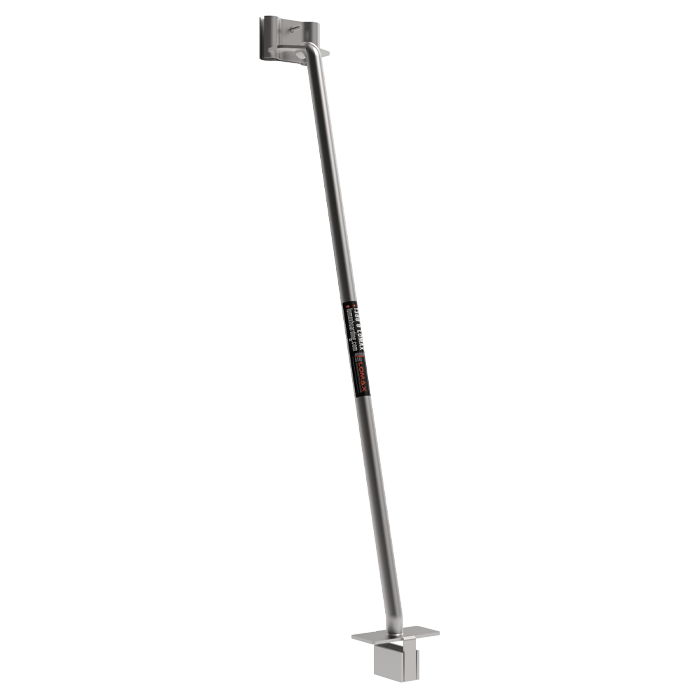

LOMAX FENCING SUPPORT POSTS

  • 90x45mm (4×2) shaped base to fit into the recess in the Counterweights
  • Integrated panel clamp (separate loose clamp not required)
  • Galvanised steel construction for strength and durability
  • Easy to stack, store and transport
  • 5kg weight

Fencing Features

Slide 1
Image is not available
Structurally Engineered and Certified System

› Tested for ‘Wind Force Overturning’

› Pendulum impact tested as per AS4687

› Climb tested for structural integrity

Slide 2
Image is not available

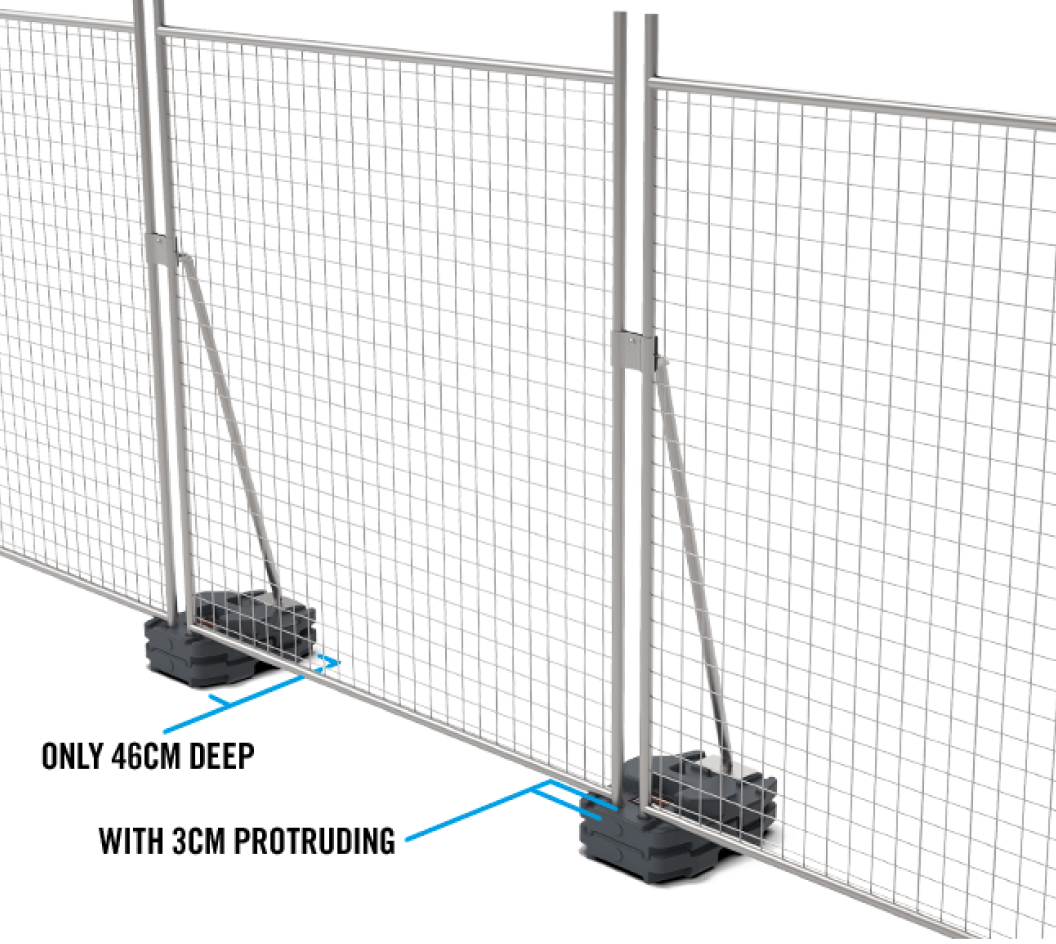

‘Safe Pedestrian Zone’ Solution

› Only 3cm protruding from front of weight

› No trip hazard for pedestrians

Slide 3
Image is not available
Narrow Footprint (From 46cm)

› Very small system footprint for maximum working space

› Additional ‘Saddle Weight’ stays with same 46cm deep footprint

› Supporting post stays with same 46cm deep footprint

Slide 4
Image is not available

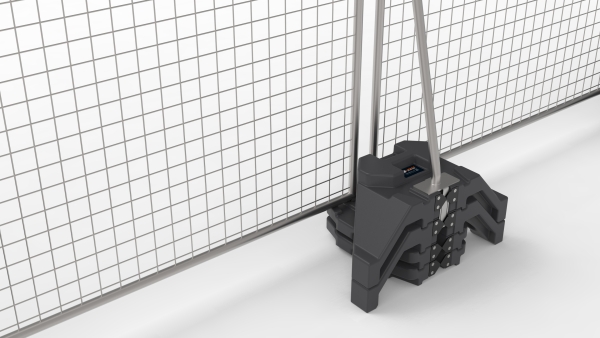

Triangulating Support Post

› Clever support post triangulates the support to the panel

› Support post slots into the rear of the counterweight for stability

Slide 5
Image is not available
No additional ‘Rear Brace’ needed

› Clever Support Post removes needs for traditional large ‘support brace / stay’

› Stays within narrow 46cm footprint

Slide 8
Image is not available
‘Dual Function’ Counterweights

› Clever Counterweight design

› Can be rotated for both hoarding and fencing configurations

› Designed to integrate with various support posts

Slide 6
Image is not available
No Separate Panel Clamps

› Clever Support Post design

› Panel Clamp is integrated into the Support Post

› Acts to further secure the counterweight remaining in place

Slide 7
Image is not available
Fits Standard 32mm OD Panels

› Tested with standard 32mm OD fence panels

› Panels are readily available from multiple sources

previous arrowprevious arrow
next arrownext arrow
Enquire here

Lomax Fencing Configurations

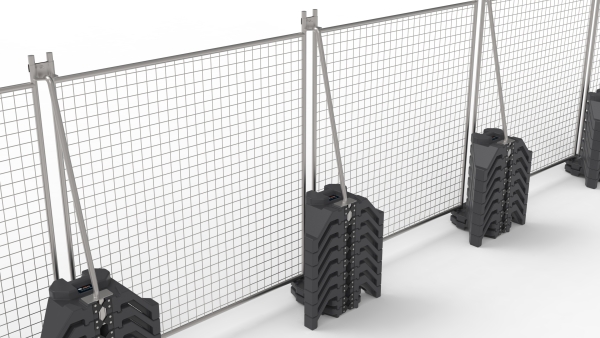

Fencing Image Example 1

Fencing Image Example 2

Fencing Image Example 3
